凱龍主營 不銹鋼鋼絲繩
 |  |

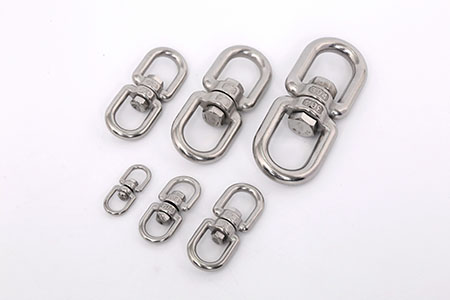

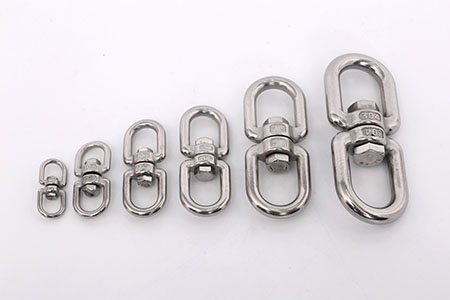

swivel

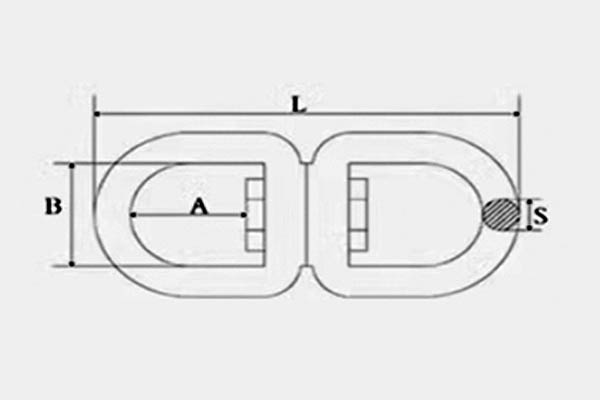

| Product Name | Model | A | B | S | L | Weight/100pcs | Load-bearing |
| (mm) | (mm) | (mm) | (mm) | (KG) | (KG) | ||
| 旋轉(zhuǎn)接環(huán) Swivel Ring | M3 | 8.30 | 9.00 | 2.84 | 35.50 | 0.669 | 50 |
| M4 | 9.62 | 11.96 | 3.70 | 47.16 | 1.768 | 133 | |
| M5 | 14.24 | 13.70 | 4.56 | 59.70 | 3.060 | 163 | |
| M6 | 15.24 | 15.26 | 5.74 | 67.60 | 4.836 | 300 | |
| M8 | 20.96 | 20.40 | 7.12 | 86.40 | 10.560 | 475 | |
| M10 | 25.30 | 24.40 | 9.26 | 110.00 | 21.830 | 875 | |
| M12 | 25.28 | 25.58 | 11.26 | 125.00 | 33.300 | 1250 | |
| M14 | 34.20 | 31.00 | 12.44 | 151.25 | 49.180 | 1600 | |
| M16 | 44.72 | 37.90 | 14.64 | 183.00 | 83.000 | 2125 | |
| M18 | 49.18 | 37.00 | 17.25 | 200.00 | 112.300 | 2200 | |
| M20 | 53.40 | 41.70 | 18.24 | 226.00 | 148.900 | 2500 | |
| M22 | 63.54 | 45.48 | 21.24 | 260.00 | 222.500 | 2800 | |
| M25 | 76.64 | 60.24 | 24.20 | 298.00 | 352.700 | 3250 | |
| M28 | 77.69 | 70.03 | 27.70 | 340.00 | 538.700 | 4000 |
